[TIL] sparta 57일차 - Canvas로 그림판 만들기

라이브 세션에서

처음으로 Canvas를 배웠다



캔버스 API

https://developer.mozilla.org/ko/docs/Web/API/Canvas_API

Canvas API - Web API | MDN

Canvas API는 JavaScript와 HTML <canvas> 엘리먼트를 통해 그래픽을 그리기위한 수단을 제공합니다.

무엇보다도 애니메이션, 게임 그래픽, 데이터 시각화, 사진 조작 및 실시간 비디오 처리를 위해 사용됩니다.

Canvas API는 주로 2D 그래픽에 중점을 두고 있습니다.

WebGL API 또한 <canvas> 엘리먼트를 사용하며, 하드웨어 가속 2D 및 3D 그래픽을 그립니다.
MDN Canvas API를 보면 위와 같이 설명합니다.



간단히 말하자면 Canvas API를 사용하여 canvas 엘리먼트를 조작하는 것이라고 이해하시면 됩니다.





작성 코드



import React, { useEffect, useRef, useState } from 'react';
import App from './App';

const DEFAULT_CANVAS_WIDTH = 600;
const DEFAULT_CANVAS_HEIGHT = 300;
const DEFAULT_PEN_SIZE = 5;

function App() {
    // 상태관리
    // 펜 사이즈
    const [penSize, setPenSize] = useState<number>(DEFAULT_PEN_SIZE);
    // 지우개 on/off
    const [eraserActived, setEraserActive] = useState<boolean>(false);
    // 색상 인덱스
    const [colorIndex, setColorIndex] = useState<number>(0);
    // HTML <canvas> 요소에 대한 참조를 저장
    const canvasRef = useRef<HTMLCanvasElement>(null);

    // 색상 리스트
    const colorList = ['#000', '#f00', '#ff8c00', '#ff0', '#008000', '#00f', '#4b0082', '#800080'];

    useEffect(() => {
        const canvas = canvasRef.current;
        if (!canvas) return;
        // 2D 그래픽 컨텍스트는 <canvas>에서 실제 그림을 그릴 수 있게 해주는 객체
        const ctx = canvas.getContext('2d');
        if (!ctx) return;

        // 현재 화면의 픽셀 비율
        const dpr = window.devicePixelRatio;

        canvas.style.width = DEFAULT_CANVAS_WIDTH + 'px';
        canvas.style.height = DEFAULT_CANVAS_HEIGHT + 'px';

        canvas.width = DEFAULT_CANVAS_WIDTH * dpr;
        canvas.height = DEFAULT_CANVAS_HEIGHT * dpr;

        ctx.scale(dpr, dpr);
        ctx.fillStyle = '#fff';
        ctx.fillRect(0, 0, DEFAULT_CANVAS_WIDTH, DEFAULT_CANVAS_HEIGHT);
        ctx.fillStyle = '#000';
        let drawing = false;

        const drawArc = (x: number, y: number) => {
            ctx.beginPath();
            ctx.arc(x, y, penSize / 2, 0, Math.PI * 2);
            ctx.fill();
        };

        const startDrawing = (e: MouseEvent) => {
            drawArc(e.clientX - canvas.offsetLeft, e.clientY - canvas.offsetTop);

            ctx.beginPath();
            ctx.moveTo(e.clientX - canvas.offsetLeft, e.clientY - canvas.offsetTop);
            drawing = true;
        };

        const draw = (e: MouseEvent) => {
            if (!drawing) return;
            ctx.lineTo(e.clientX - canvas.offsetLeft, e.clientY - canvas.offsetTop);
            ctx.stroke();
            ctx.closePath();
            ctx.beginPath();
            ctx.moveTo(e.clientX - canvas.offsetLeft, e.clientY - canvas.offsetTop);
        };

        const stopDrawing = () => {
            if (!drawing) return;
            ctx.closePath();
            drawing = false;
        };

        canvas.addEventListener('mousedown', startDrawing);
        window.addEventListener('mousemove', draw);
        window.addEventListener('mouseup', stopDrawing);

        return () => {
            window.removeEventListener('mousemove', draw);
            window.removeEventListener('mouseup', stopDrawing);
        };
    }, [penSize]);

    useEffect(() => {
        const canvas = canvasRef.current;
        if (!canvas) return;
        const ctx = canvas.getContext('2d');
        if (!ctx) return;
        ctx.lineWidth = penSize;
    }, [penSize]);

    useEffect(() => {
        const canvas = canvasRef.current;
        if (!canvas) return;
        const ctx = canvas.getContext('2d');
        if (!ctx) return;

        ctx.lineCap = 'round';
        ctx.lineJoin = 'round';
        ctx.lineWidth = penSize;
        if (eraserActived) {
            ctx.fillStyle = '#fff';
            ctx.strokeStyle = '#fff';
        } else {
            const currentColor = colorList[colorIndex];
            ctx.fillStyle = currentColor;
            ctx.strokeStyle = currentColor;
        }
    }, [eraserActived, colorIndex, penSize]);

    const handleChangePenSize = (e: React.ChangeEvent<HTMLInputElement>) => {
        setPenSize(parseInt(e.target.value));
    };

    const handleChangeEraser = (e: React.ChangeEvent<HTMLInputElement>) => {
        setEraserActive(e.target.checked);
    };

    const handleChangeColor = (index: number) => {
        setEraserActive(false);
        setColorIndex(index);
    };

    return (
        <div>
            <div className='menu'>
                <div className='menu-item'>
                    <strong className='menu-title'>펜 굵기 {penSize}</strong>
                    <div className='menu-content'>
                        <input type='range' min={1} max={30} value={penSize} onChange={handleChangePenSize} />
                    </div>
                </div>
                <div className='menu-item'>
                    <strong className='menu-title'>지우개</strong>
                    <div className='menu-content'>
                        <input
                            type='checkbox'
                            id='eraser-input'
                            checked={eraserActived}
                            className='eraser-input'
                            onChange={handleChangeEraser}
                        />
                        <label htmlFor='eraser-input' className='eraser-label'></label>
                    </div>
                </div>
                <div className='menu-item'>
                    <strong className='menu-title'>색상</strong>
                    <div className='menu-content'>
                        <ul className='color-list'>
                            {colorList.map((item, index) => (
                                <li key={item} className='color-item'>
                                    <button
                                        type='button'
                                        className='color-button'
                                        onClick={() => handleChangeColor(index)}
                                    >
                                        <div
                                            className='color-background'
                                            style={{ background: colorList[index] }}
                                        ></div>
                                    </button>
                                </li>
                            ))}
                        </ul>
                    </div>
                </div>
            </div>
            <div className='canvas-area'>
                <canvas ref={canvasRef} />
            </div>
        </div>
    );
}

export default App;

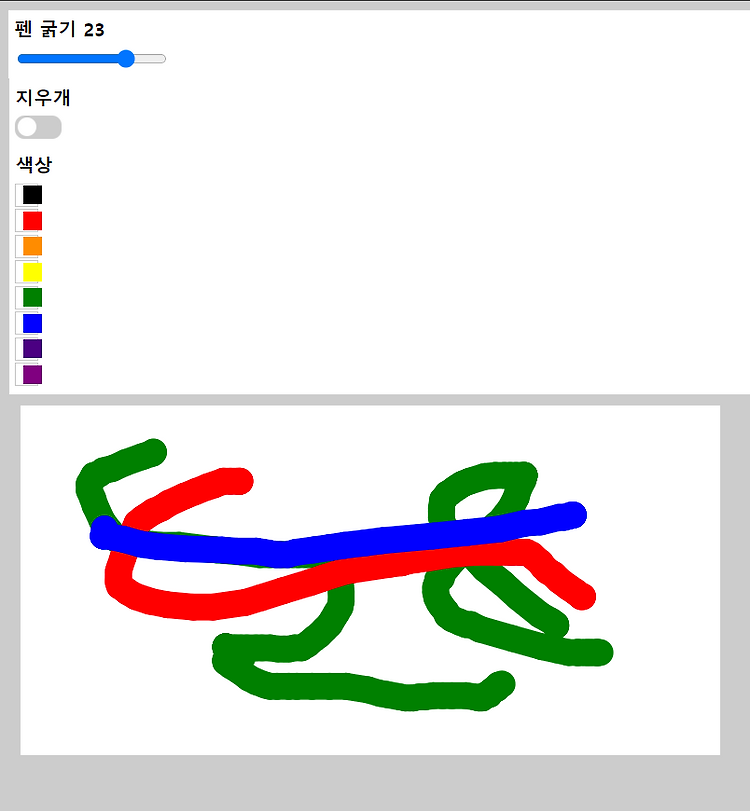

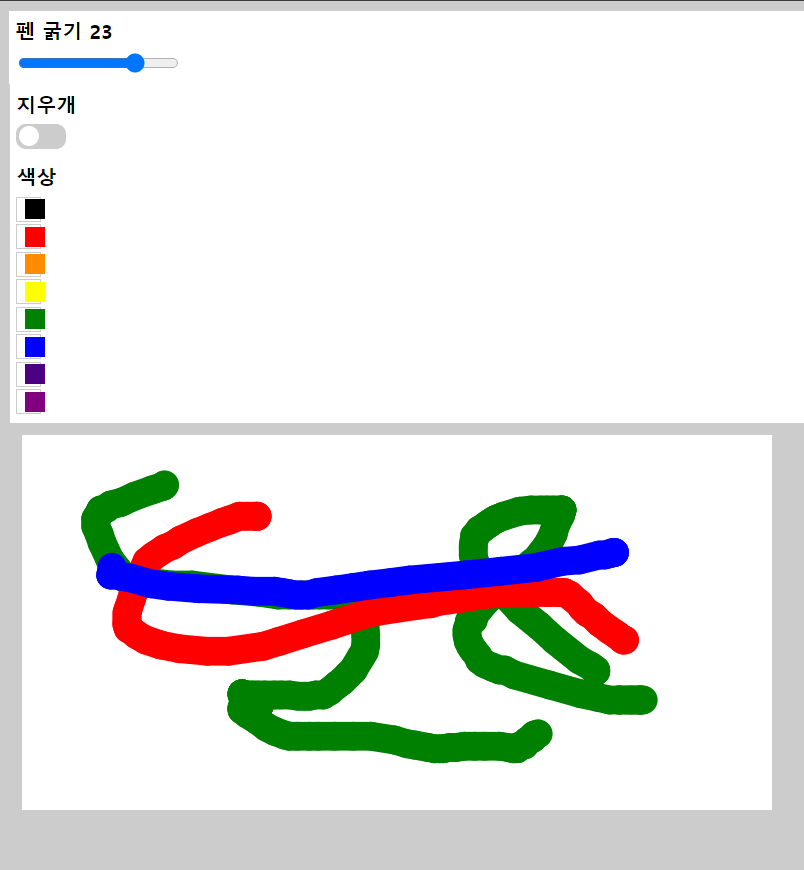

실행 결과
